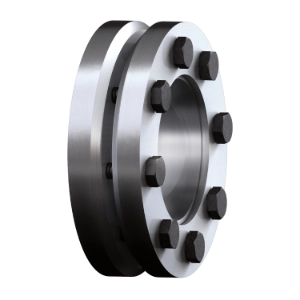

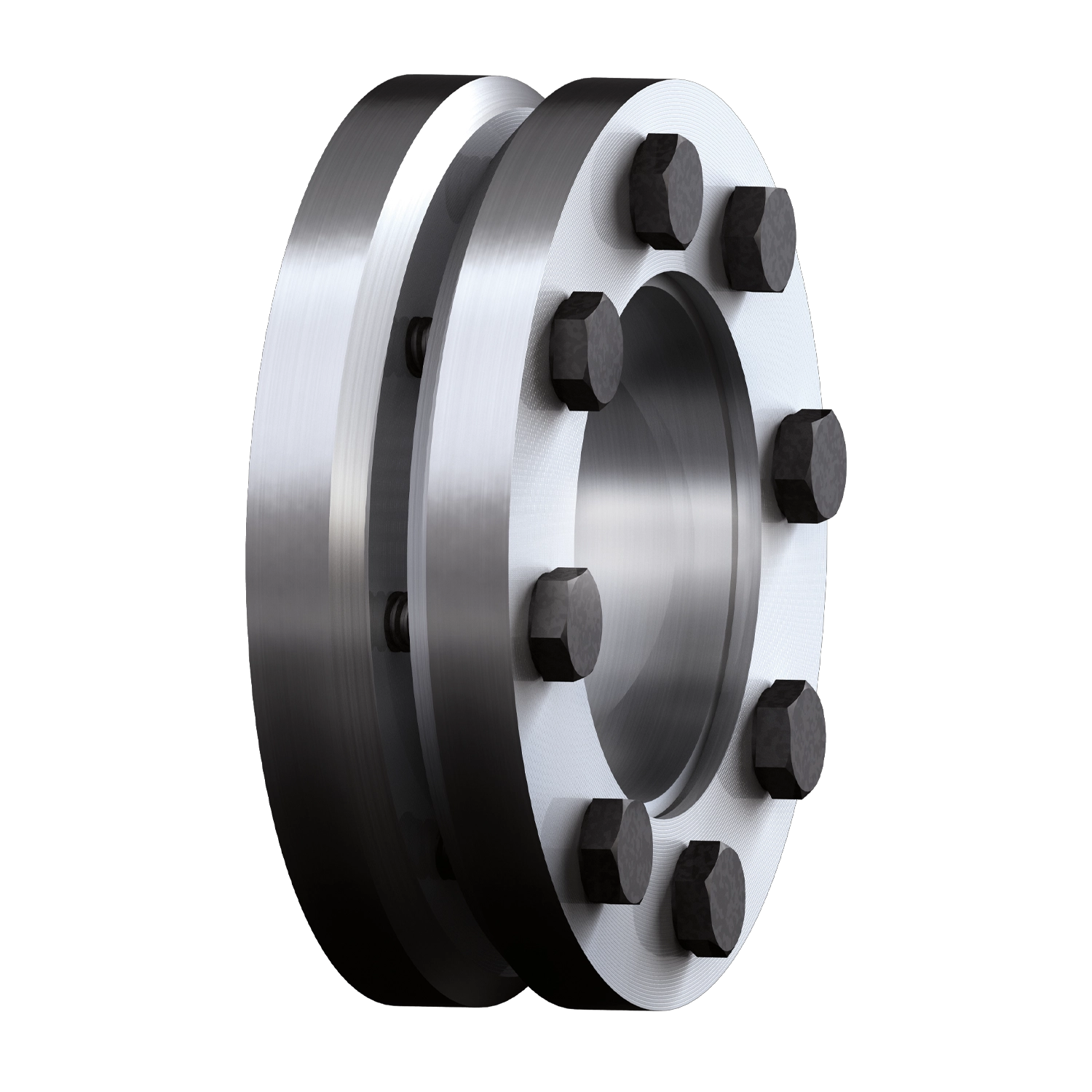

Product image CLAMPEX KTR 603 Clamping elements three-parter external clamping set

CLAMPEX® KTR 603

28 - 1,460,000 Nm / Three-part external clamping set

The CLAMPEX KTR 603 external clamping set is a shaft-hollow shaft-connection. This external clamping set allows for a backlash-free and frictionally engaged connection between cylindrical shafts without keyway and hollow shafts.

The wedge-shaped components that are shifted on top of each other via clamping screws generate radial forces which provide for friction fit between shaft and hollow shaft.

This friction fit allows for simultaneous transmission of torque and axial force. Disassembly of the CLAMPEX KTR 603 external clamping set is significantly easier compared to other types of clamping sets, since KTR 603 automatically unclamps when untightening the clamping screws.

CLAMPEX KTR 603 external clamping screws are preferred, among other things, as an alternative to a feather key connection considering their benefits.

Features

  • Backlash-free shaft-hollow shaft-connection / shrink disks

  • simultaneous transmission of torque and axial force

  • maintenance-free

  • operating temperature from -20 °C to +160 °C

  • backlash-free
