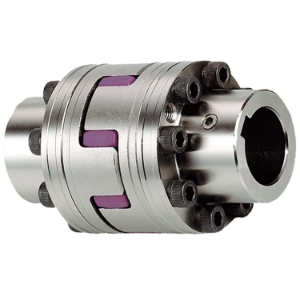

Product image ROTEX AFN flange program

ROTEX® AFN

0 - 35,000 Nm / coupling as a flange type

ROTEX AFN is a torsionally flexible elastomer coupling as a double-flange type and particularly suitable for applications in heavy engineering.

Design AFN of the ROTEX elastomer coupling is characterized by the double flange type allowing for radial assembly and disassembly of the shaft coupling or elastomer without displacing the driving or driven side.

The flange hub 4N of the torsionally flexible jaw coupling as a flange type ROTEX AFN is made of steel and the driving flange 3Na is made of GJS.

Features

  • fail-safe jaw couplings

  • complying with UKEX (acc. to UKEX directive SI 2016:1107)

  • complying with ATEX (acc. to EU directive 2014/34/EU)

  • application up to a circumferential speed of 40 m/s

  • compensating for displacements (axial, radial, angular)

Product Details

CAD drawings

Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.

to the 3D-SpaceCenter
