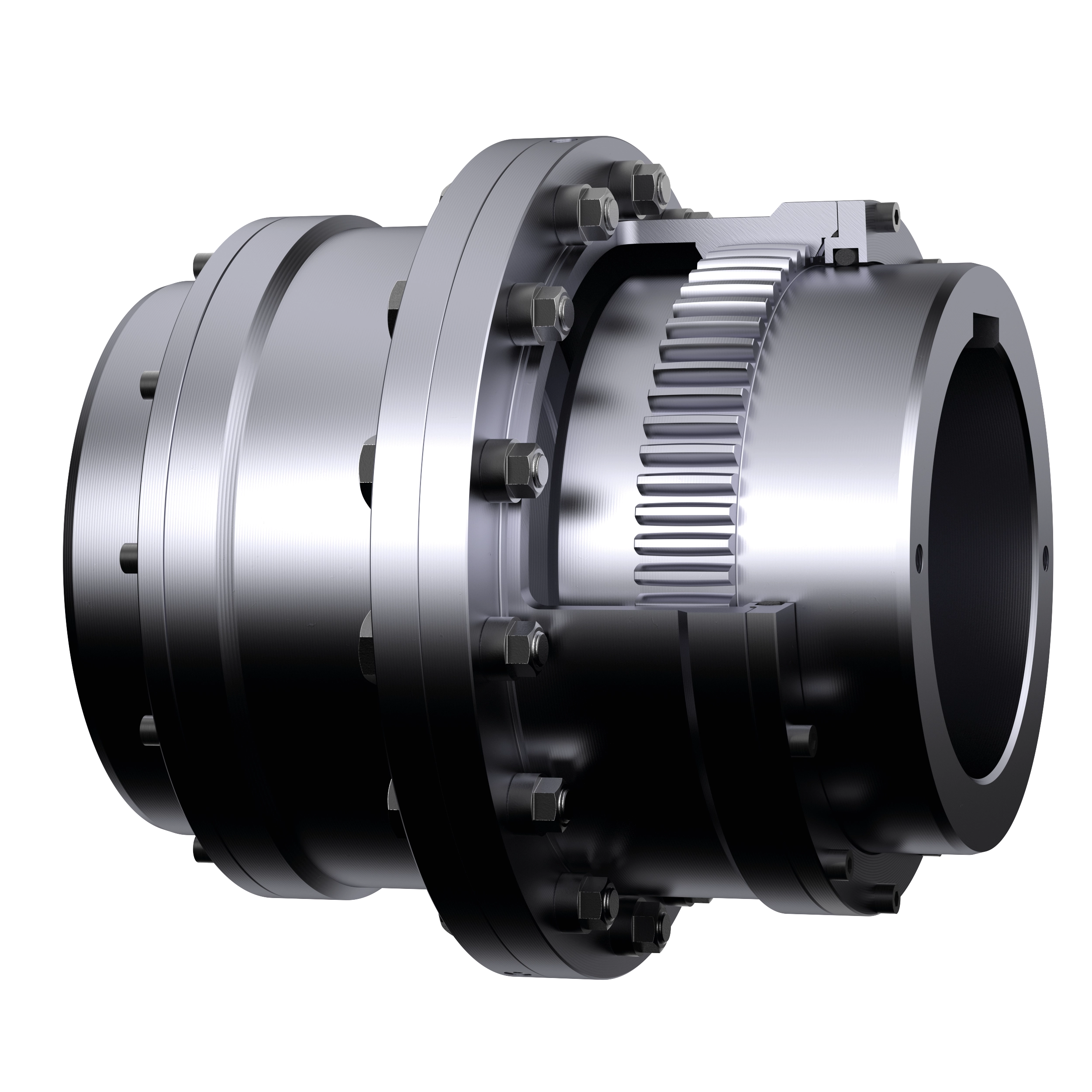

The GEARex DB all-steel gear coupling has a medium shaft distance dimension.
Its hubs are turned outwards. The hubs of this gear coupling can be axially fixed by means of locking thread, interference fits or or end plate.
Material adaptations for sleeve and hubs allow the transmission of higher torques. higher torques. Thanks to the cover design, the gear coupling is easy to install. The gearing can be visually inspected by removing the cover.
double-cardanic all-steel gear coupling
high power density
high torques up to 2,750,000 Nm with small dimensions
sleeve in cover design for easy assembly
high torques with small dimensions
Find 2D CAD drawings for download here.
You need 3D drawings instead? Then please visit our 3D CAD library.
